产品·产品配套
A |
| B |
|
端子 Terminal
型号 Type | 图号 Pic | 压线范围 Wire Range | 厚度 Thickness | 材质 Material | 尺寸 Dimension (mm) | 对照表 Comparison No. | 备注 Remark | |||
AWG# | mm² | L | W | E | ||||||
ZTT-2.0PT | A | 24~22 | 0.2~0.3 | 0.25 | 黄铜 | 15.2 | 0.62 | 4.5 | 插头 | |

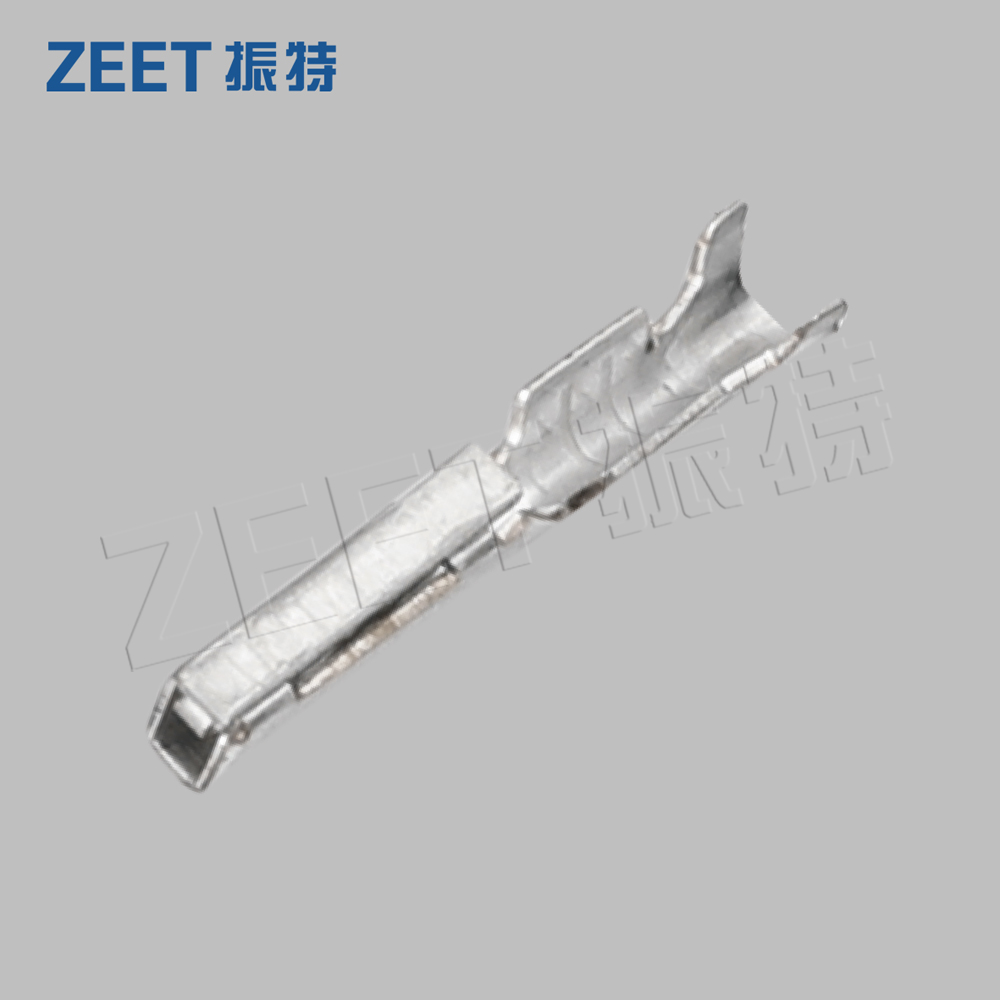

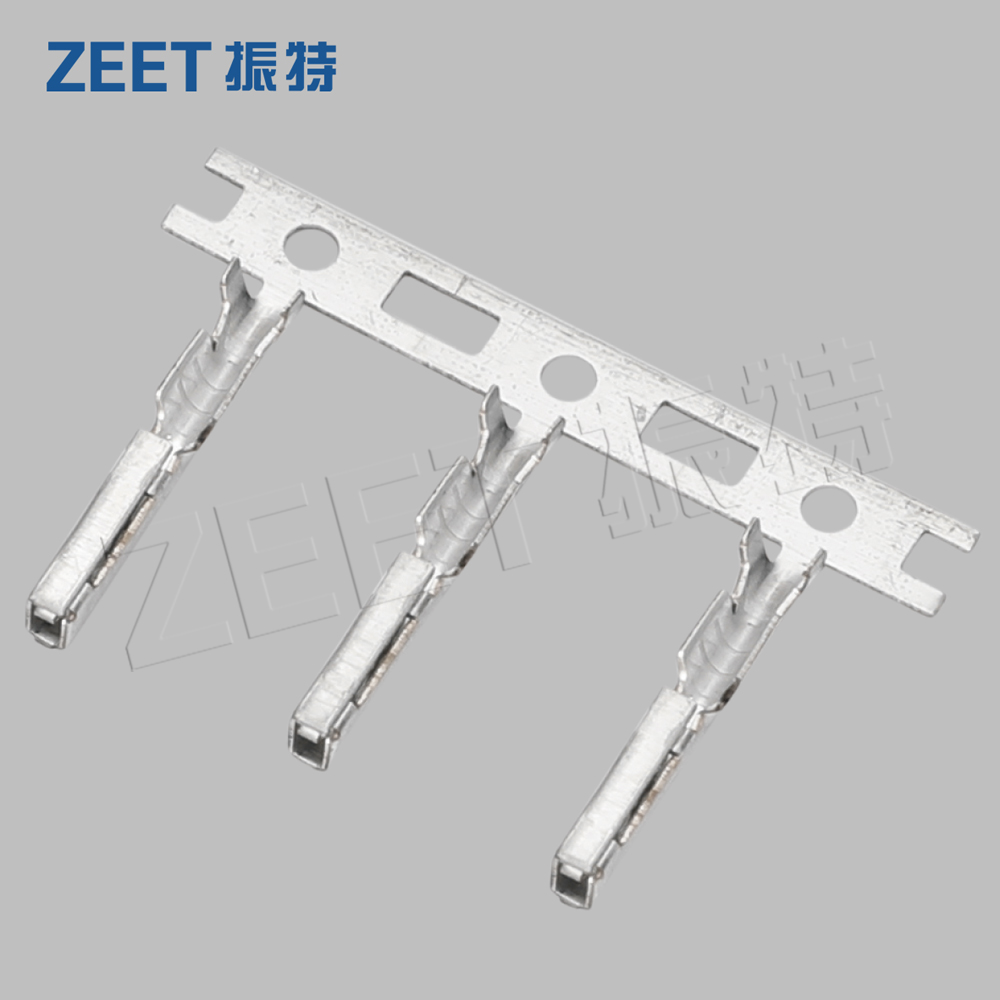

ZTT-2.0RT | B | 24~22 | 0.2~0.3 | 0.25 | 磷铜 | 11.8 | 1.45 | 4.5 | 插座 | |
塑料件Plastic parts
线数 Hole count | 插头 Plug for male terminal | 插座 Receptacle for female terminal |
2 | ZT7021A-0.6-11A
| ZT7021A-0.6-21A
|
3 | ZT7031A-0.6-11A
| ZT7031A-0.6-21A
|
4 | ZT7041A-0.6-11A
| ZT7041A-0.6-21A
|
6 | ZT7061A-0.6-11A
| ZT7061A-0.6-21A
|
8 | ZT7081A-0.6-11A
| ZT7081A-0.6-21A
|
产品·产品展示
产品·作业基准
使用线数(Hole count): 2 3 4 6 8
温度范围（Temperature range): -25℃～85℃
额定电压（Rated voltage):300V. AC/DC
额定电流（Rated current): 4A
