A |
| 技术参数Specifications 使用线数(Hole count): 2 3 温度范围（Temperature range):-25℃～85℃ 额定电压（Rated voltage):300V. AC/DC 额定电流（Rated current): 5A
|
B |
|
端子 Terminal
型号 Type | 图号 Pic | 压线范围 Wire Range | 厚度 Thickness | 材质 Material | 尺寸 Dimension (mm) | 对照表 Comparison No. | 备注 Remark | |||
AWG# | mm² | L | W | E | ||||||

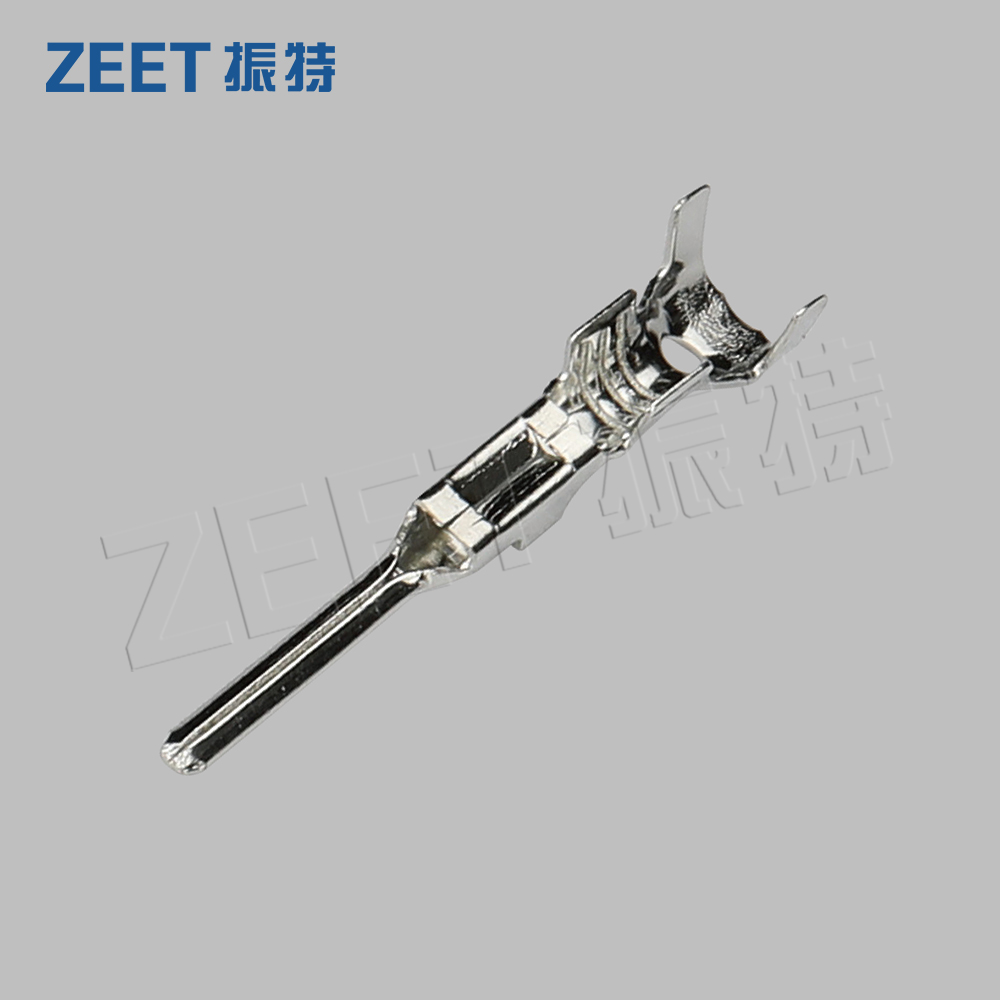

DJ611-1.5A | A | 17~15 | 1.0~1.5 | 0.3 | 黄铜 | 23 | 1.5 | 6.0 | 插头 | |
DJ621-1.5A | B | 17~15 | 1.0~1.5 | 0.3 | 黄铜 | 16.8 | 2.6 | 6.3 | 插座 | |
塑料件Plastic parts
线数 Hole count | 插头 Plug for female terminal | 插座 Receptacle for male terminal |

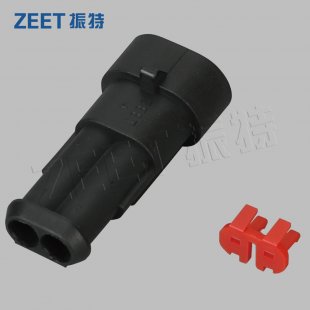

2 | DJ7021-1.5-11
| DJ7021-1.5-21
|

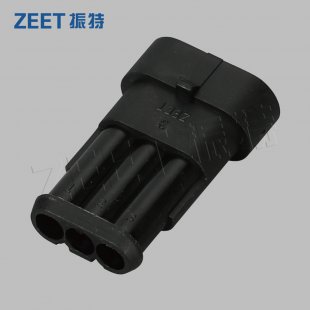

3 | DJ7031-1.5-11
| DJ7031-1.5-21
|
使用线数(Hole count): 2 3
温度范围（Temperature range):-25℃～85℃
额定电压（Rated voltage):300V. AC/DC
额定电流（Rated current): 5A
