A |
| 技术参数Specifications 使用线数(Hole count): 2 3 6 温度范围（Temperature range): -25℃～85℃ 额定电压（Rated voltage):300V. AC/DC 额定电流（Rated current): 5A
|
B |
|
端子 Terminal
型号 Type | 图号 Pic | 压线范围 Wire Range | 厚度 Thickness | 材质 Material | 尺寸 Dimension (mm) | 对照表 Comparison No. | 备注 Remark | |||
AWG# | mm² | L | W | E | ||||||
DJ611-1.8A/BL8 | A | 22~20 | 0.3~0.5 | 0.3 | 黄铜 | 23.1 | 1.8 | 7.2 | 插头 | |

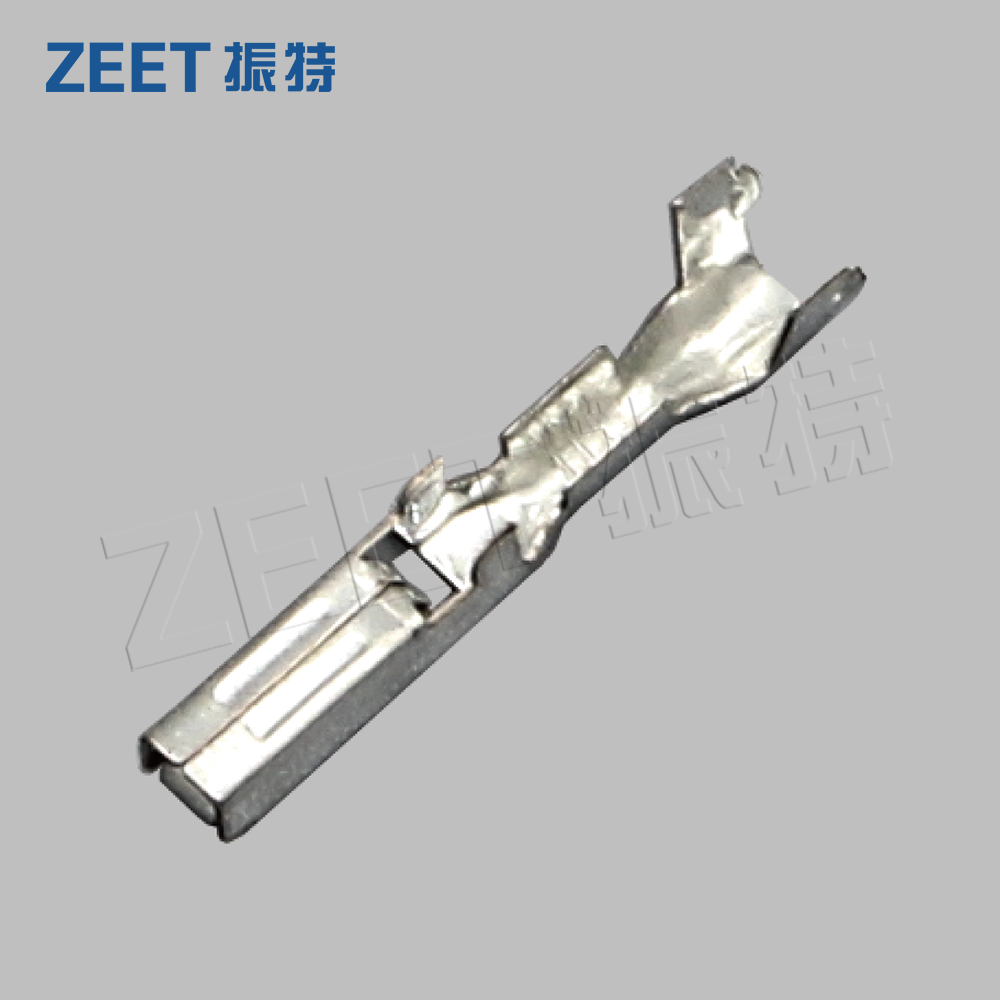

DJ621-1.8A | B | 22~20 | 0.3~0.5 | 0.25 | 磷铜 | 19.1 | 2.7 | 7.9 | 插座 | |
塑料件Plastic parts
线数 Hole count | 插头 Plug for male terminal | 插座 Receptacle for female terminal |
2 | DJ7021-1.8-11
| DJ7021-1.8-21
|
3 | DJ7031-1.8-11
| |
6 | DJ7061-1.8-11
| DJ7061-1.8-21
|
使用线数(Hole count): 2 3 6
温度范围（Temperature range):-25℃～85℃
额定电压（Rated voltage):300V. AC/DC
额定电流（Rated current): 5A
