A |
| 技术参数Specifications 使用线数(Hole count): 3 4 温度范围（Temperature range): -25℃～85℃ 额定电压（Rated voltage):300V. AC/DC 额定电流（Rated current): 5A |
B |
|
端子 Terminal
型号 Type | 图号 Pic | 压线范围 Wire Range | 厚度 Thickness | 材质 Material | 尺寸 Dimension (mm) | 对照表 Comparison No. | 备注 Remark | |||
AWG# | mm² | L | W | E | ||||||

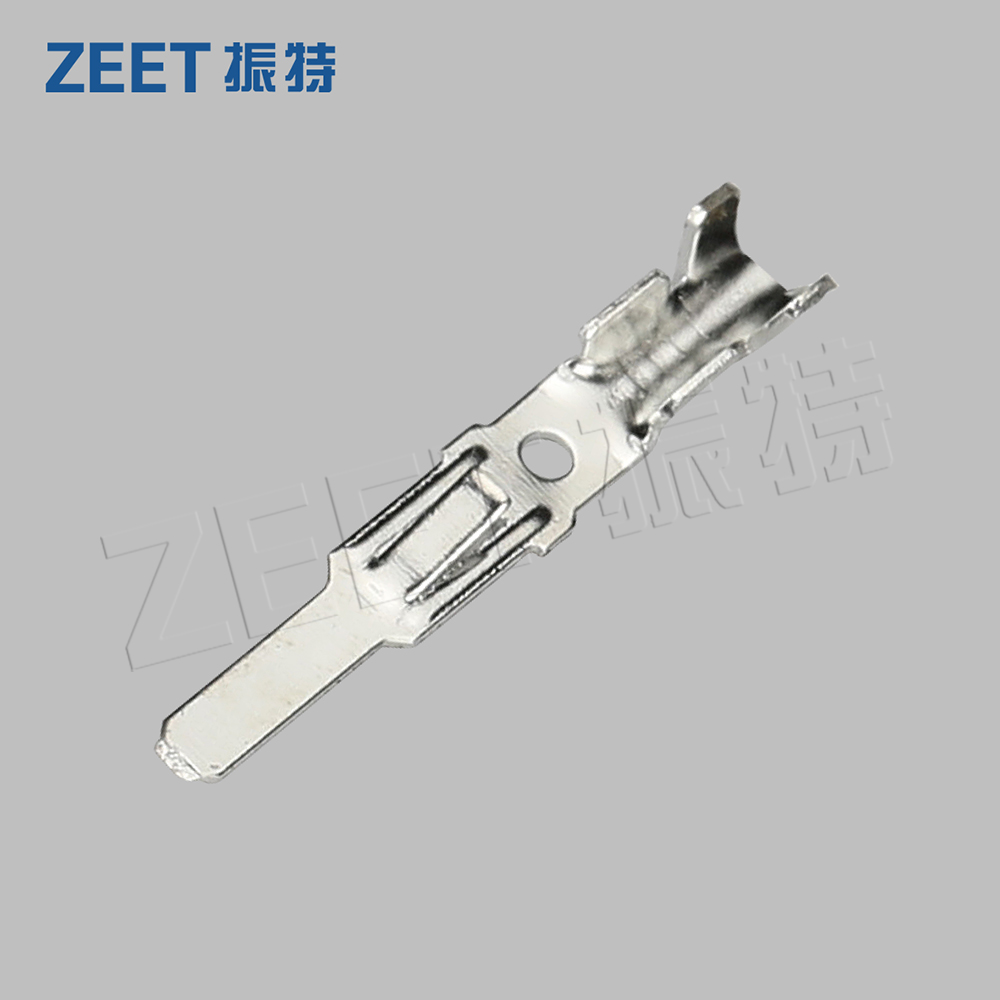

DJ611-D2 | A | 20~17 | 0.5~1.0 | 0.4 | 黄铜 | 19.6 | 1.8 | 5.2 | 插头 | |

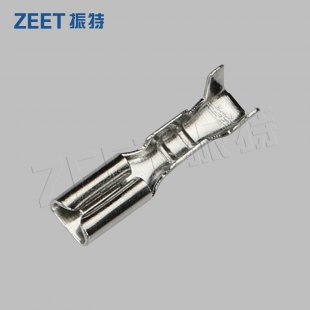

DJ621-D2*0.5A | B | 20~17 | 0.5~1.0 | 0.25 | 磷铜 | 12 | 3.1 | 5.8 | 插座 | |
塑料件Plastic parts
线数 Hole count | 插头 Plug for male terminal | 插座 Receptacle for female terminal |
3 | DJ7031-2-11
| DJ7031-2-21
|
4 | DJ7041-2-21
|
使用线数(Hole count): 3 4
温度范围（Temperature range): -25℃～85℃
额定电压（Rated voltage):300V. AC/DC
额定电流（Rated current): 5A
