A |
| 技术参数Specifications 使用线数(Hole count): 12 温度范围（Temperature range): -25℃～85℃ 额定电压（Rated voltage):300V. AC/DC 额定电流（Rated current): 5A |
B |
|
端子 Terminal
型号 Type | 图号 Pic | 压线范围 Wire Range | 厚度 Thickness | 材质 Material | 尺寸 Dimension (mm) | 对照表 Comparison No. | 备注 Remark | |||
AWG# | mm² | L | W | E | ||||||
DJ612-2.3A | A | 18~16 | 0.7~1.2 | 0.3 | 黄铜 | 23.8 | 2.2 | 7.0 | 插头 | |
DJ622-G2.3A | B | 18~16 | 0.7~1.2 | 0.25 | 磷铜 | 16.3 | 3.0 | 7.0 | 插座 | |

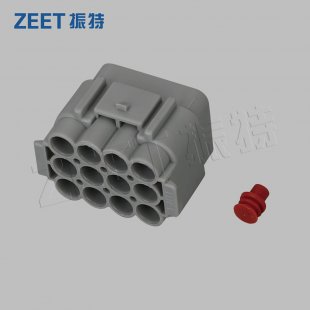

塑料件Plastic parts
线数 Hole count | 插头 Plug for male terminal | 插座 Receptacle for female terminal |
12 | DJ7125Y-2.3-11 | DJ7125Y-2.3-21
|
使用线数(Hole count): 12
温度范围（Temperature range): -25℃～85℃
额定电压（Rated voltage):300V. AC/DC
额定电流（Rated current): 5A
