A | | 技术参数Specifications 使用线数(Hole count): 1 温度范围（Temperature range):-25℃～85℃ 额定电压（Rated voltage):300V. AC/DC 额定电流（Rated current): 25A |
B | |
端子 Terminal
型号 Type | 图号 Pic | 压线范围 Wire Range | 厚度 Thickness | 材质 Material | 尺寸 Dimension (mm) | 对照表 Comparison No. | 备注 Remark | |||
AWG# | mm² | L | W | E | ||||||

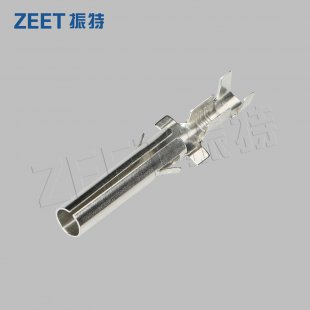

DJ211-5C | A | 14~12 | 2.0~3.0 | 0.4 | 黄铜 | 40.5 | 4.9 | 10 | 插座 | |

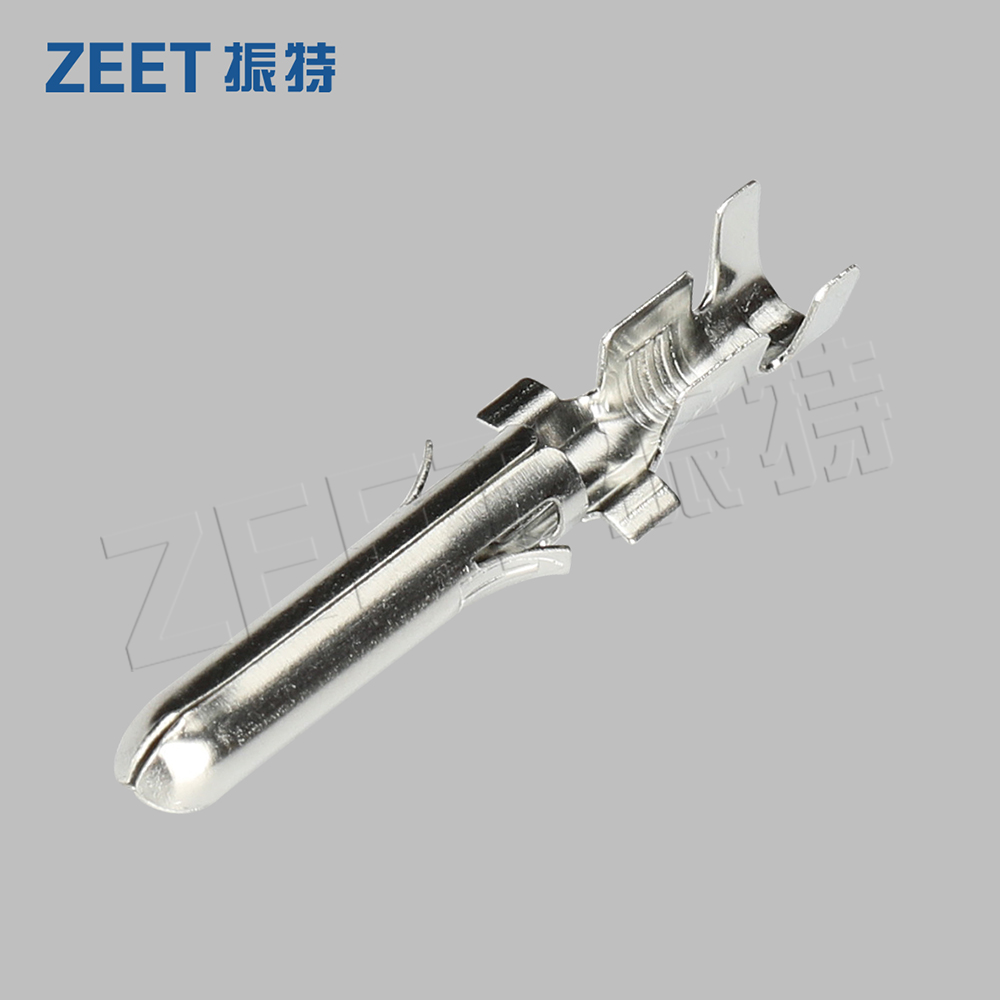

DJ221-5C | B | 14~12 | 2.0~3.0 | 0.4 | 磷铜 | 40.1 | 5.6 | 10 | 插头 | |

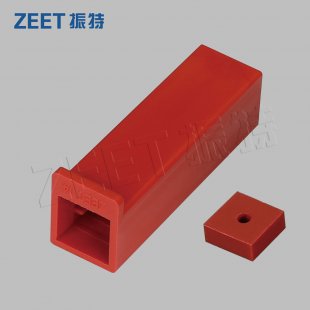

塑料件Plastic parts
线数 Hole count | 插座 Receptacle for female terminal | 插头 Plug for male terminal |
1 | DJ3011-5D-21
| DJ3011-5D-11
|
使用线数(Hole count): 1
温度范围（Temperature range):-25℃～85℃
额定电压（Rated voltage):300V. AC/DC
额定电流（Rated current): 25A
