| 技术参数Specifications 使用线号(Hole count): 2 3 4 5 6 7 9 温度范围（Temperature range): -25℃～85℃ 额定电压（Rated voltage):250V. AC/DC 额定电流（Rated current): 3A |
B | |
端子 Terminal
型号 Type | 图号 Pic | 压线范围 Wire Range | 厚度 Thickness | 材质 Material | 尺寸 Dimension (mm) | 对照表 Comparison No. | 备注 Remark | |||
AWG# | mm² | L | W | E | ||||||

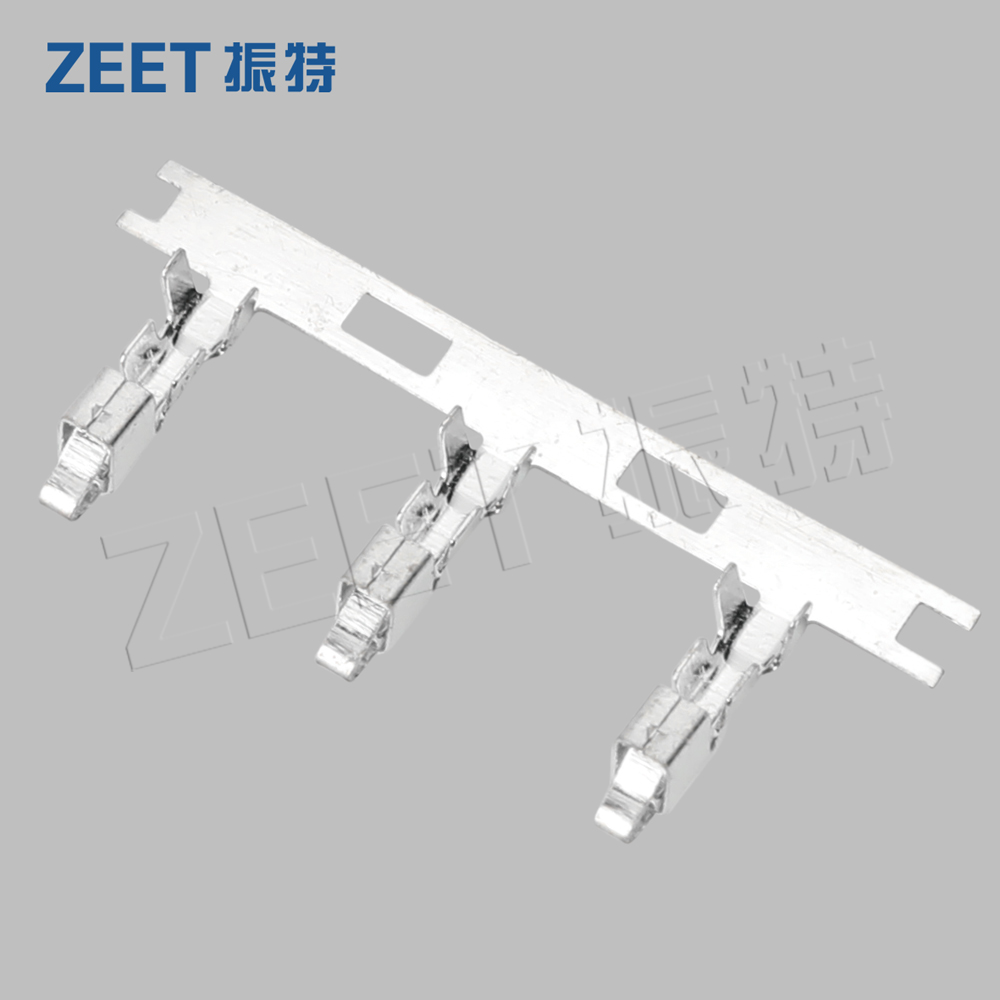

SM-A | A | 22~18 | 0.3~0.75 | 0.25 | 磷铜 | 16 | 1 | 3.6 | 插头 | |

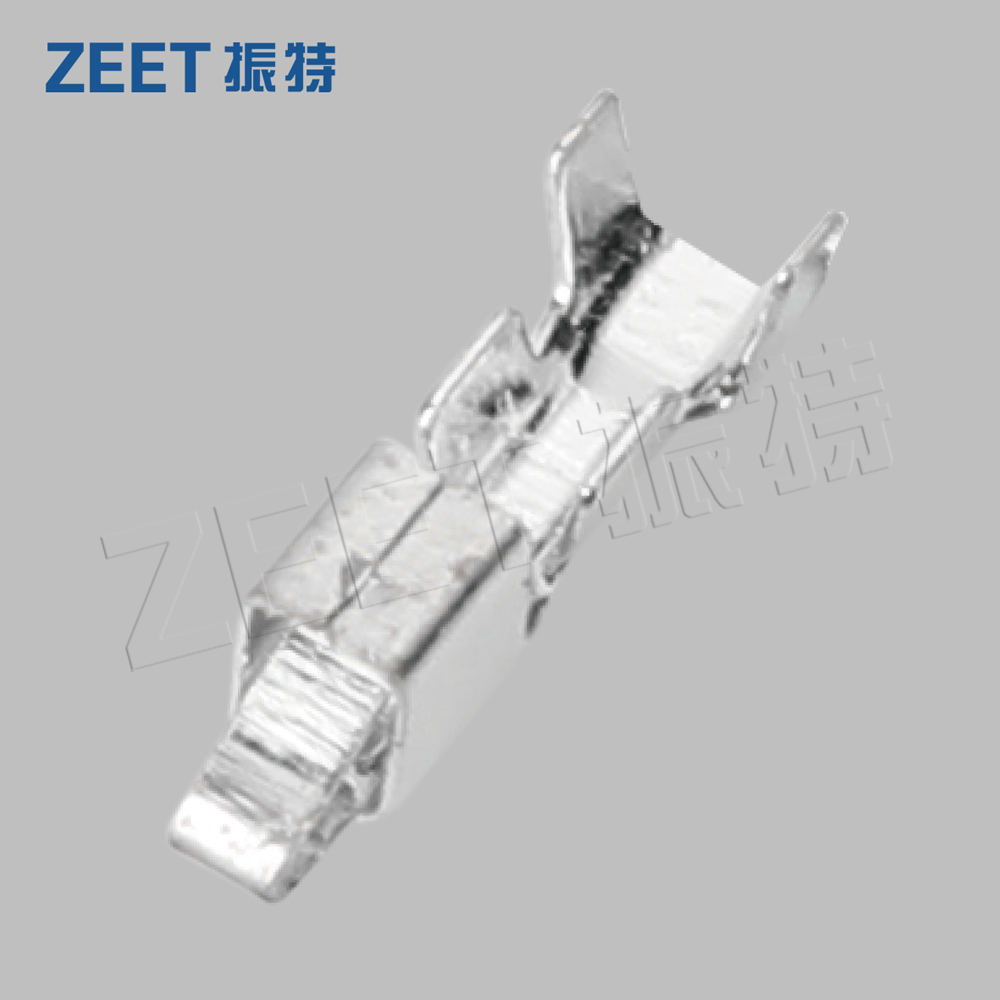

SM-Y | B | 22~18 | 0.3~0.75 | 0.2 | 磷铜 | 9 | 1.2 | 4.0 | 插座 | |
塑料件Plastic parts
线数 Hole count | 插头 Plug for male terminal | 插座 Receptacle for female terminal |
2 | SM-2A | SM-2Y
|
2 | SM-2A
| SM-2Y 无翼
|
3 | SM-3A
| SM-3Y
|
4 | SM-4A
| SM-4Y
|
5 | SM-5A
| SM-5Y
|
6 | SM-6A | SM-6Y
|
7 | SM-7A
| SM-7Y
|
9 | SM-9A
| SM-9Y
|
使用线号(Hole count): 2 3 4 5 6 7 9
温度范围（Temperature range): -25℃～85℃
额定电压（Rated voltage):250V. AC/DC
额定电流（Rated current): 3A
