A |
| 技术参数Specifications 使用线数(Hole count): 3 4 6 9 16 温度范围（Temperature range): -25℃～85℃ 额定电压（Rated voltage):300V. AC/DC 额定电流（Rated current): 5A |
B |
|
端子 Terminal
型号 Type | 图号 Pic | 压线范围 Wire Range | 厚度 Thickness | 材质 Material | 尺寸 Dimension (mm) | 对照表 Comparison No. | 备注 Remark | |||
AWG# | mm² | L | W | E | ||||||
DJ613-2.3 | A | 18~16 | 0.7~1.2 | 0.3 | 黄铜 | 25.2 | 2.3 | 7.3 | 插头 | |
DJ621-2.3 | B | 18~16 | 0.7~1.2 | 0.3 | 黄铜 | 16.3 | 3.0 | 7.3 | 插座 | |
塑料件Plastic parts
线数 Hole count | 插头 Plug for male terminal | 插座 Receptacle for female terminal |
3 | DJ7031Y-2.3-11
| DJ7031Y-2.3-21
|
4 | DJ7041Y-2.3-11
| DJ7041Y-2.3-21
|
6 | DJ7061Y-2.3-11
| DJ7061Y-2.3-21
|
9 | DJ7091Y-2.3-11
| DJ7091Y-2.3-21
|
16 | DJ7161Y-2.3-11
| DJ7161Y-2.3-21
|

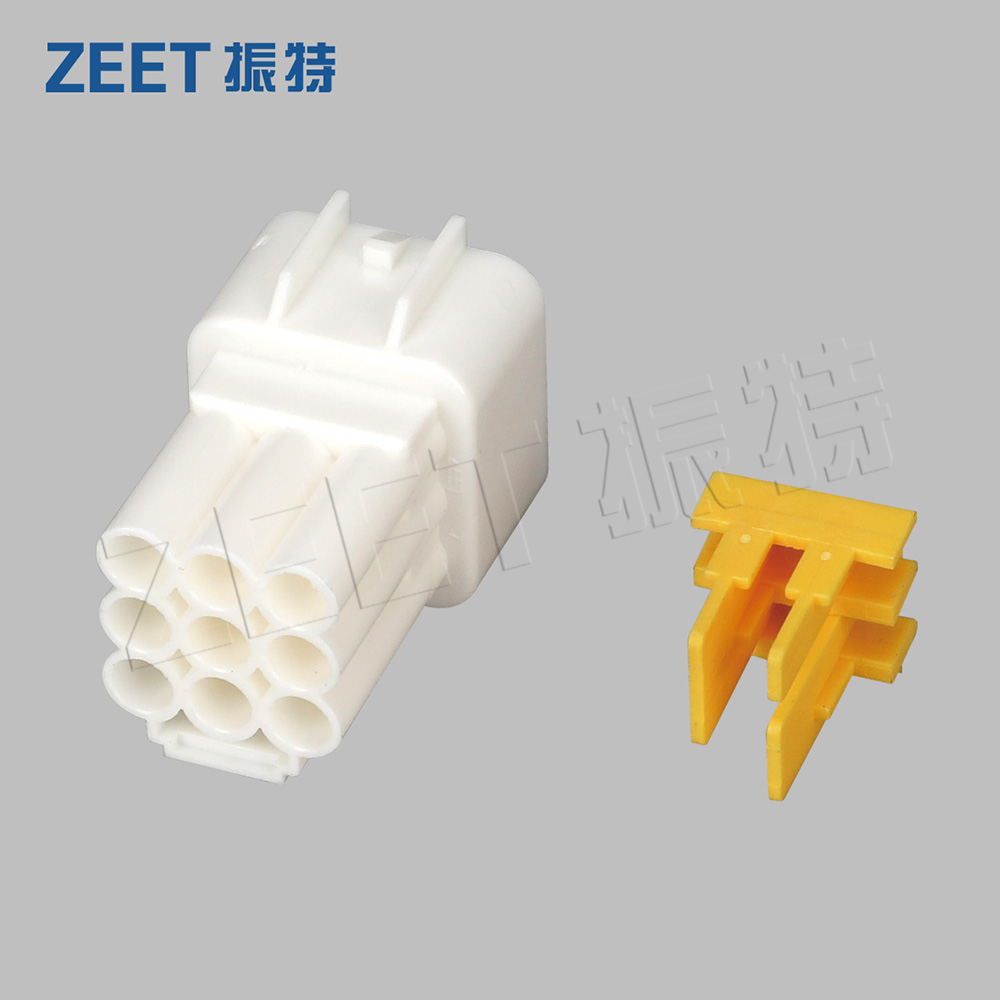

产品型号(Product spec)：DJ7091Y-2.3-11
使用线数(Hole count)：9
基本尺寸(Basic sizes)：L=35，W=22.1，H=19.9
材质(Material quality)：PA66/PAV0/POM
颜色(Colour)：白色/黑色
特性(Characteristic)：防水
