A |
| 技术参数Specifications 使用线数(Hole count): 1 2 3 温度范围（Temperature range): -25℃～85℃ 额定电压（Rated voltage):300V. AC/DC 额定电流（Rated current): 25A~30A |
B | |
端子 Terminal
型号 Type | 图号 Pic | 压线范围 Wire Range | 厚度 Thickness | 材质 Material | 尺寸 Dimension (mm) | 对照表 Comparison No. | 备注 Remark | |||
AWG# | mm² | L | W | E | ||||||

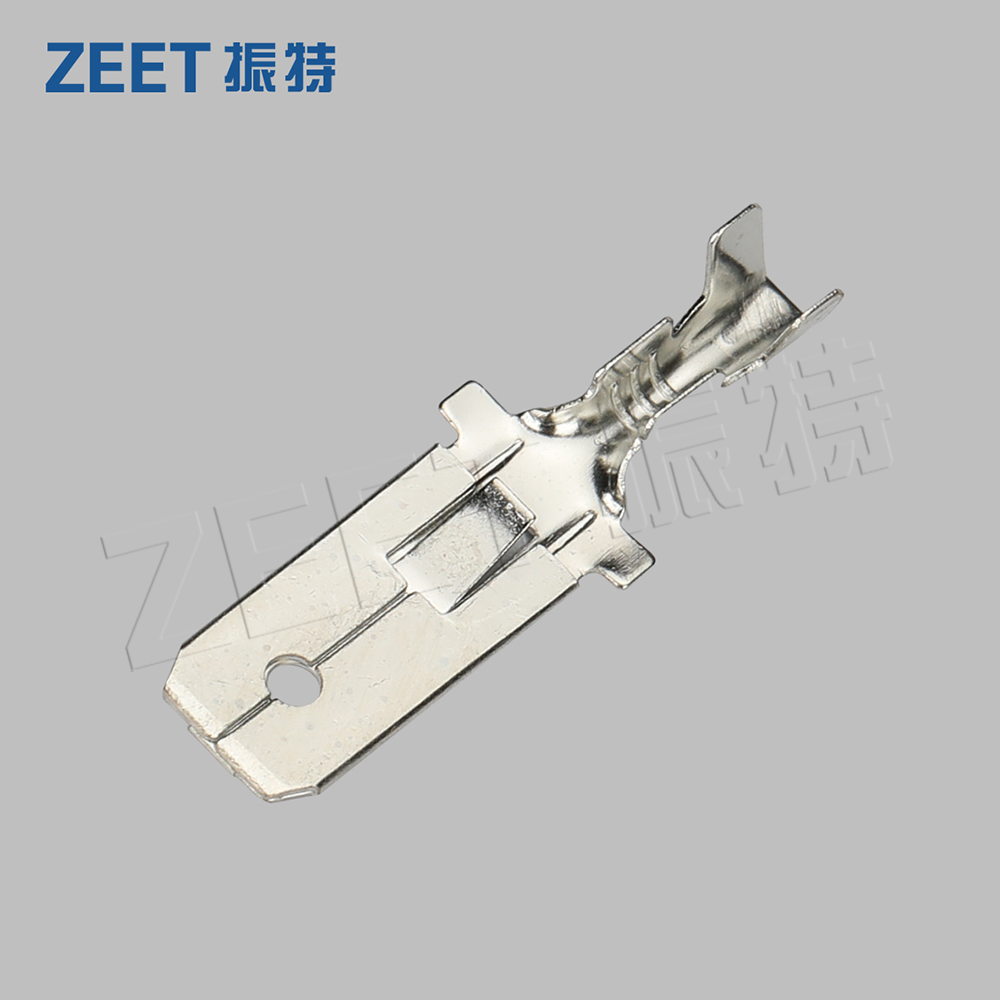

DJ611-7.8A-B | A | 17~14 | 0.9~1.8 | 0.4 | 黄铜 | 30.2 | 7.8 | 9.5 | 插头 | |
DJ611-7.8A-C | 13~12 | 2.5~3.5 | 0.4 | 黄铜 | 30.2 | 7.8 | 9.5 | 插头 | ||
DJ621-E7.8A-B | B | 17~14 | 0.9~1.8 | 0.4 | 黄铜 | 24.5 | 9.0 | 9.3 | 插座 | |
DJ621-E7.8A-C | 13~12 | 2.5~3.5 | 0.4 | 黄铜 | 24.5 | 9.0 | 9.3 | 插座 | ||

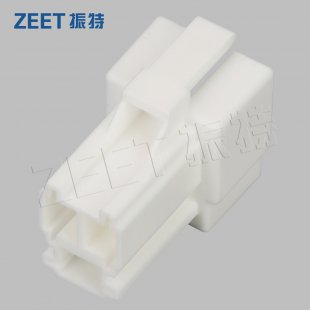

塑料件Plastic parts
线数 Hole count | 插头 Plug for male terminal | 插座 Receptacle for female terminal |
1 | DJ7014-7.8-11
| DJ7014-7.8-21
|
2 | DJ7021-7.8-11
| DJ7021-7.8-21
|
3 | DJ7031-7.8-11
| DJ7031-7.8-21
|
使用线数(Hole count): 1 2 3
温度范围（Temperature range): -25℃～85℃
额定电压（Rated voltage):300V. AC/DC
额定电流（Rated current): 25A~30A
