A |
| 技术参数Specifications 使用线数(Hole count): 1 2 3 温度范围（Temperature range): -25℃～85℃ 额定电压（Rated voltage):300V. AC/DC 额定电流（Rated current): 25A~30A |
B |
|
端子 Terminal
型号 Type | 图号 Pic | 压线范围 Wire Range | 厚度 Thickness | 材质 Material | 尺寸 Dimension (mm) | 对照表 Comparison No. | 备注 Remark | |||
AWG# | mm² | L | W | E | ||||||

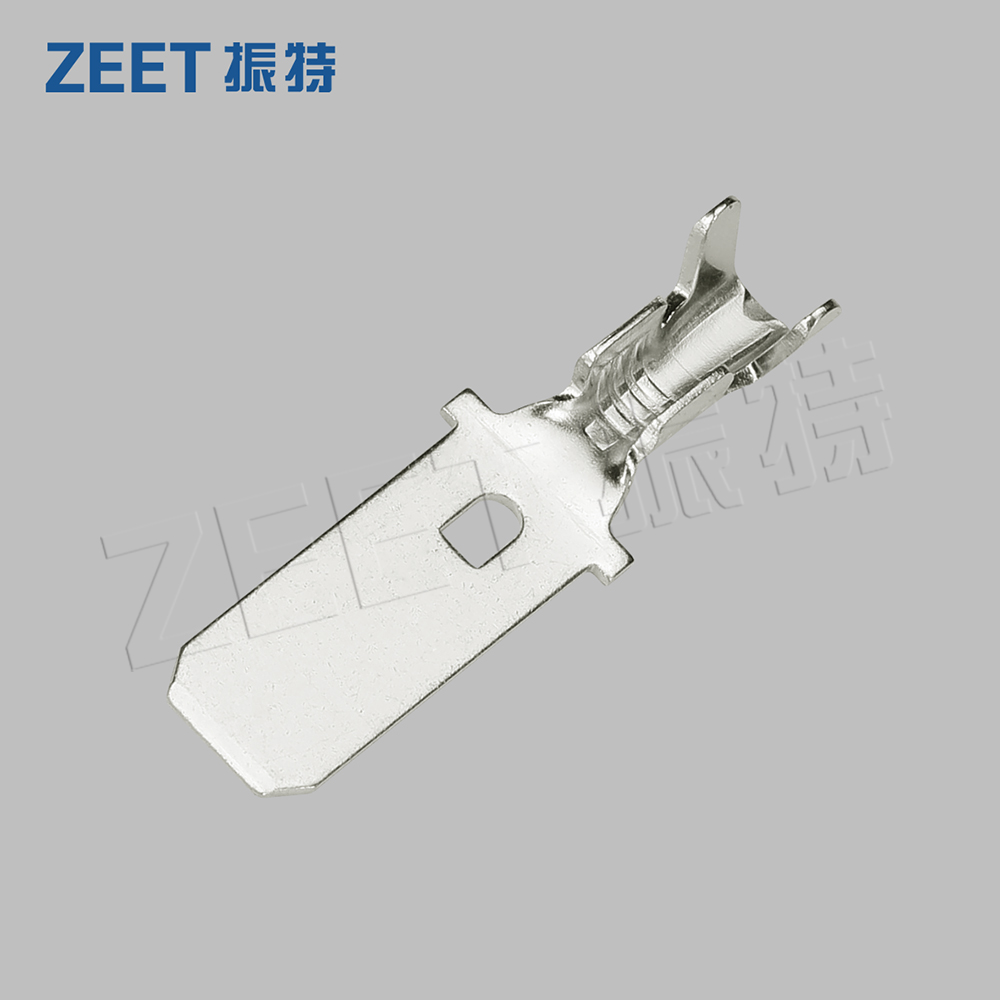

DJ615-7.8B-C | A | 14~12 | 2.0~3.0 | 0.8 | 黄铜 | 31.5 | 7.85 | 9.8 | 插头 | |
DJ625-7.8*0.8B-C | B | 14~12 | 2.0~3.0 | 0.4 | 磷铜 | 24.5 | 9.0 | 9.0 | 插座 | |
塑料件Plastic parts
线数 Hole count | 插头 Plug for male terminal | 插座 Receptacle for female terminal |
1 | DJ7013-7.8-11
| DJ7013-7.8-21
|
2 | DJ7022Y-7.8-11
| DJ7022Y-7.8-21
|
3 | DJ7033Y-7.8-11
| DJ7033Y-7.8-21
|
使用线数(Hole count): 1 2 3
温度范围（Temperature range): -25℃～85℃
额定电压（Rated voltage):300V. AC/DC
额定电流（Rated current): 25A~30A
