A |
|
B |
|
端子 Terminal
|
型号 Type |
图号 Pic |
压线范围 Wire Range |
厚度 Thickness |
材质 Material |
尺寸 Dimension (mm) |
备注 Remark |
|||
|
AWG# |
mm² |
L |
W |
E |
|||||
|
DJ211-3.5A |
A |
20~17 |
0.5~1.0 |
0.5 |
黄铜 |
16.6 |
3.55 |
7.3 |
|
|
DJ211-4A |
B |
22~18 |
0.3~0.75 |
0.4 |
黄铜 |
17.1 |
3.95 |
7 |
|
|
DJ211-4B |
20~15 |
0.5~1.5 |
0.4 |
黄铜 |
17.1 |
3.95 |
7 |
||
|
DJ211-4C |
14~13 |
2.0~3.0 |
0.4 |
黄铜 |
17.1 |
3.95 |
7 |
||
|
C |
|
D |
|
端子 Terminal
|
型号 Type |
图号 Pic |
压线范围 Wire Range |
厚度 Thickness |
材质 Material |
尺寸 Dimension (mm) |
备注 Remark |
|||
|
AWG# |
mm² |
L |
W |
E |
|||||
|
DJ221-3.5A |
C |
20~17 |
0.5~1.0 |
0.4 |
黄铜 |
17.6 |
4.3 |
7.5 |
|
|
DJ221-4AS-2 |
D |
22~18 |
0.3~0.75 |
0.35 |
磷铜 |
17.7 |
4.5 |
7.6 |
|
|
DJ221-4A-2 |
20~17 |
0.5~1.0 |
0.4 |
磷铜 |
17.7 |
4.6 |
7 |
||
|
DJ221-4B-2 |
18~15 |
0.75~1.5 |
0.4 |
磷铜 |
17.7 |
4.55 |
7 |
||
|
DJ221-4C-2 |
14~13 |
2.0~3.0 |
0.4 |
黄铜 |
17.7 |
4.6 |
7 |
||
|
E |
|
端子 Terminal
|
型号 Type |
图号 Pic |
压线范围 Wire Range |
厚度 Thickness |
材质 Material |
尺寸 Dimension (mm) |
备注 Remark |
|||
|
AWG# |
mm² |
L |
W |
E |
|||||
|
DJ222-4A |
E |
20~17 |
0.5~1.0 |
0.35 |
磷铜 |
20 |
10 |
8 |
|

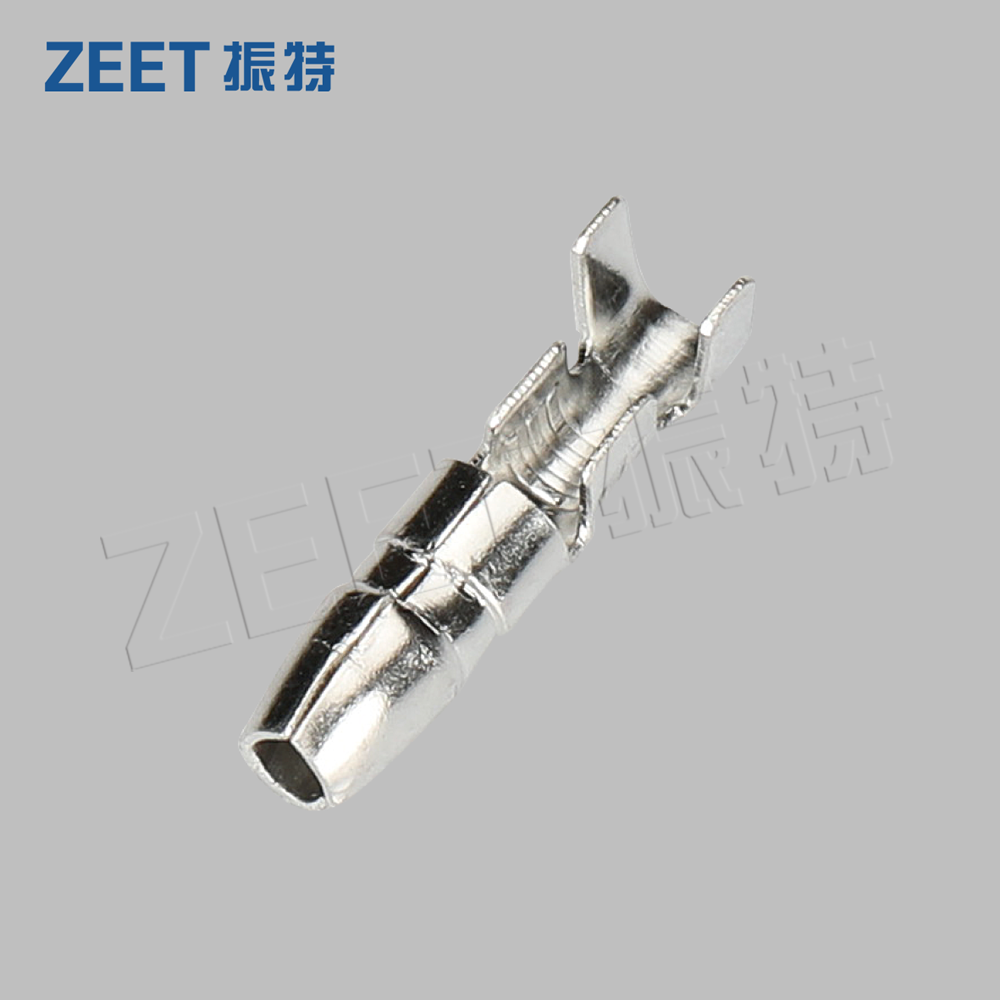

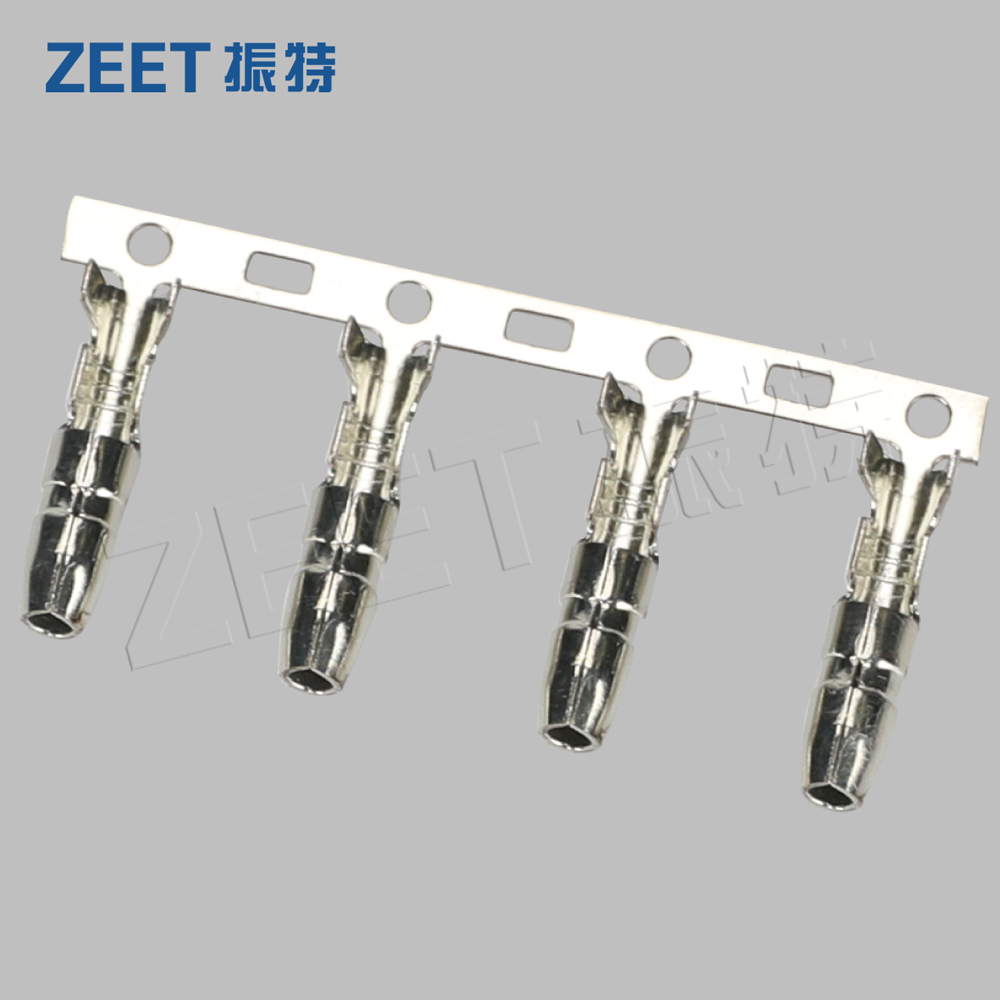

产品型号(Product spec)：DJ211-4A
压线范围(Wire Range)：0.3mm²~0.75mm²
基本尺寸(Basic sizes)：L=17.1，W=3.95，E=7
材质(Material quality)：黄铜
厚度(Thickness)：0.4mm
产品型号(Product spec)：DJ211-4B
压线范围(Wire Range)：0.5mm²~1.5mm²
基本尺寸(Basic sizes)：L=17.1，W=3.95，E=7
材质(Material quality)：黄铜
厚度(Thickness)：0.4mm
产品型号(Product spec)：DJ211-4C
压线范围(Wire Range)：2.0mm²~3.0mm²
基本尺寸(Basic sizes)：L=17.1，W=3.95，E=7
材质(Material quality)：黄铜
厚度(Thickness)：0.4mm
