A |
| 技术参数Specifications 使用线数(Hole count): 1 温度范围（Temperature range): -25℃～85℃ 额定电压（Rated voltage):300V. AC/DC 额定电流（Rated current):
|
B |
| |
端子 Terminal
型号 Type | 图号 Pic | 压线范围 Wire Range | 厚度 Thickness | 材质 Material | 尺寸 Dimension (mm) | 对照表 Comparison No. | 备注 Remark | |||
AWG# | mm² | L | W | E | ||||||
ZTT217-4A | A | 20~17 | 0.5~1.0 | 0.4 | 磷铜 | 20.2 | 3.95 | 6.2 | 插头护套 | |
ZTT217-4B | 17~15 | 1.0~1.5 | 0.4 | 磷铜 | 20.2 | 3.95 | 6.2 | 插头护套 | ||
ZTT227-4A | B | 20~17 | 0.5~1.0 | 0.4 | 磷铜 | 20.3 | 4.7 | 7.0 | 插座护套 | |
ZTT227-4B | 17~15 | 1.0~1.5 | 0.4 | 磷铜 | 20.3 | 4.7 | 7.0 | 插座护套 | ||
塑料件Plastic parts
线数 Hole count | 插头护套 Plug Housing | 插座护套 Receptacle Housing |
1 | ZT2146
| ZT2145
|

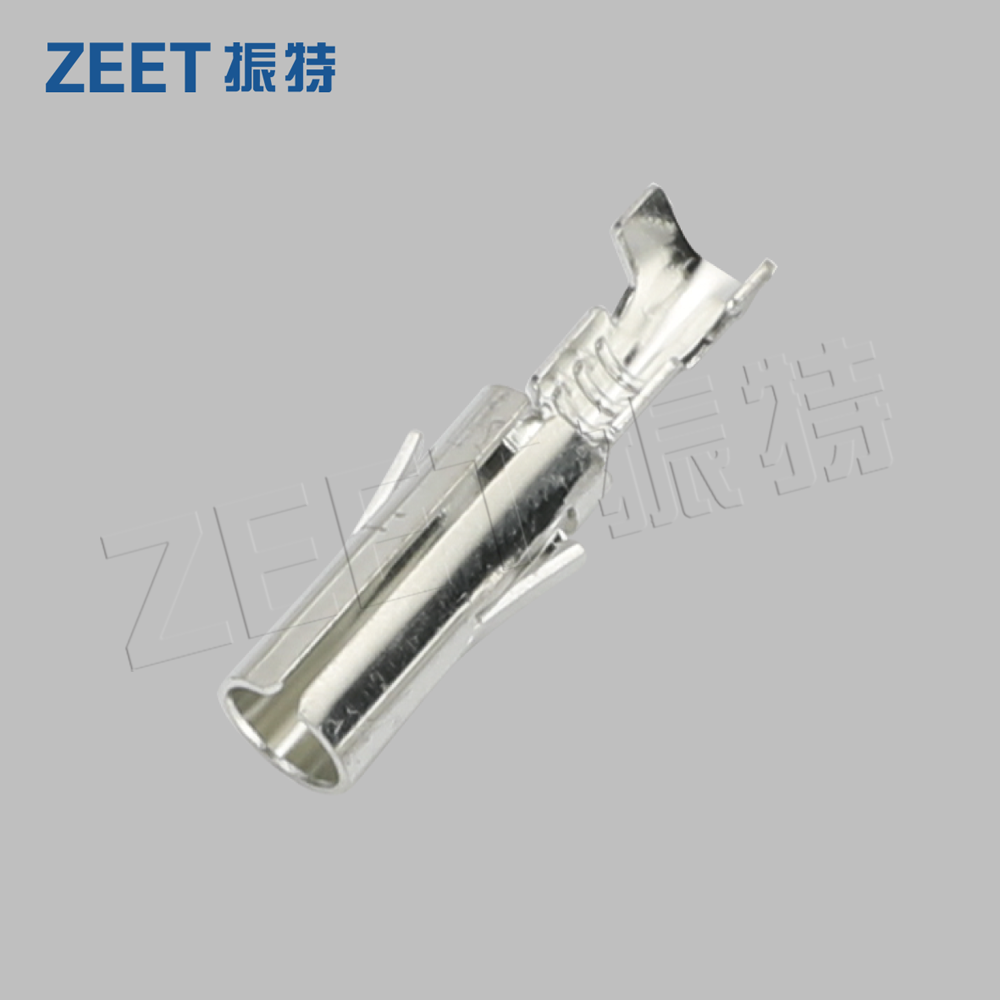

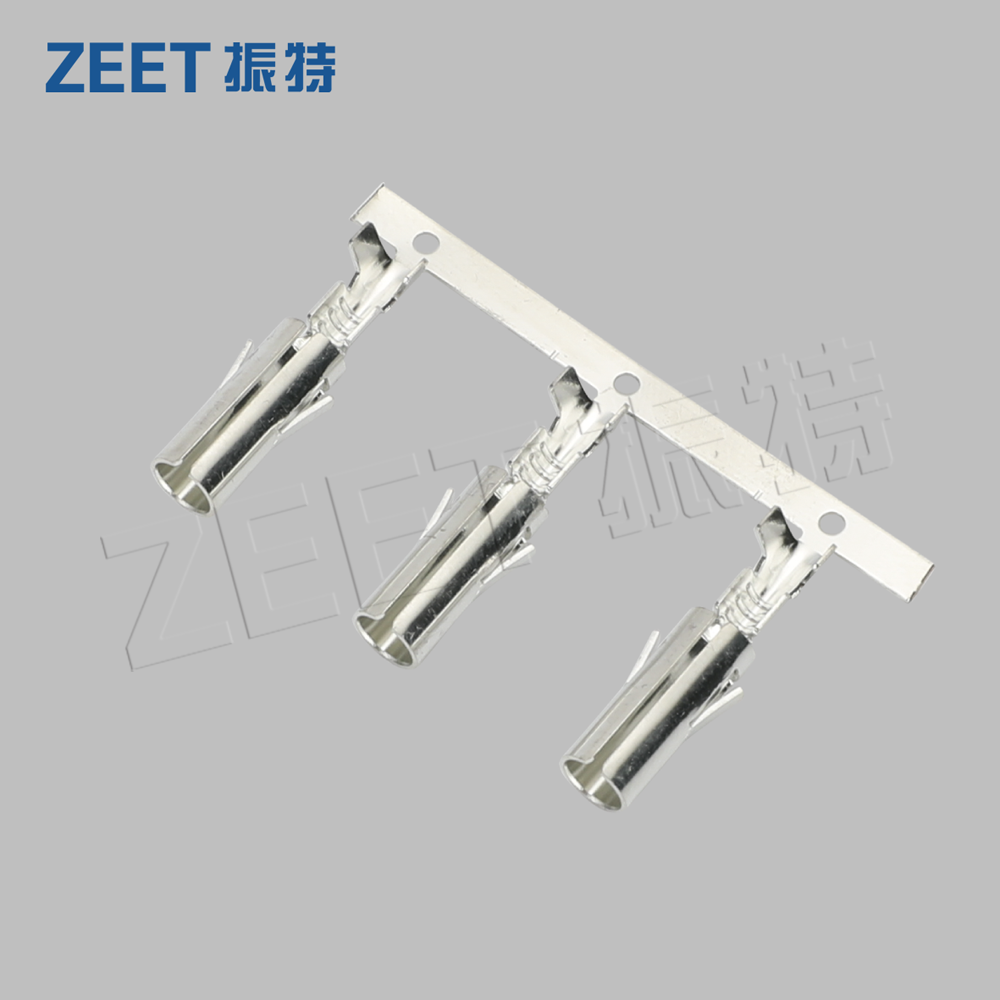

产品型号(Product spec)：ZTT227-4B
压线范围(Wire Range)：1.0mm²~1.5mm²
材质(Material quality)：磷铜
厚度(Thickness)：0.4mm
